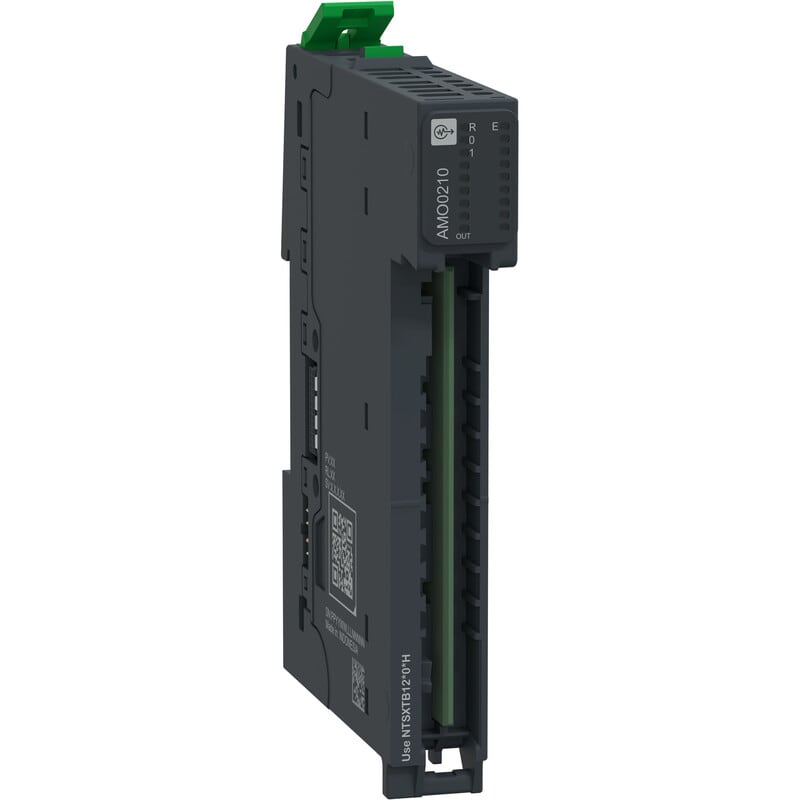

SCHNEIDER ELECTRIC - Logiikkamoduuli - Analogialähtö 2ch + pohja

Analog Output Module + Base, 2 Isolated Out, Current, Voltage, Modicon Edge I/O NTS This analog output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog output module. It features 2 isolated voltage current outputs of type ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V, and ±20mA, 0 to 20mA, 4 to 20mA. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 20 to 60 degrees Celsius. It has an IP protection rating of IP20. It measures 116mm high, 15mm wide, 88mm deep and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
