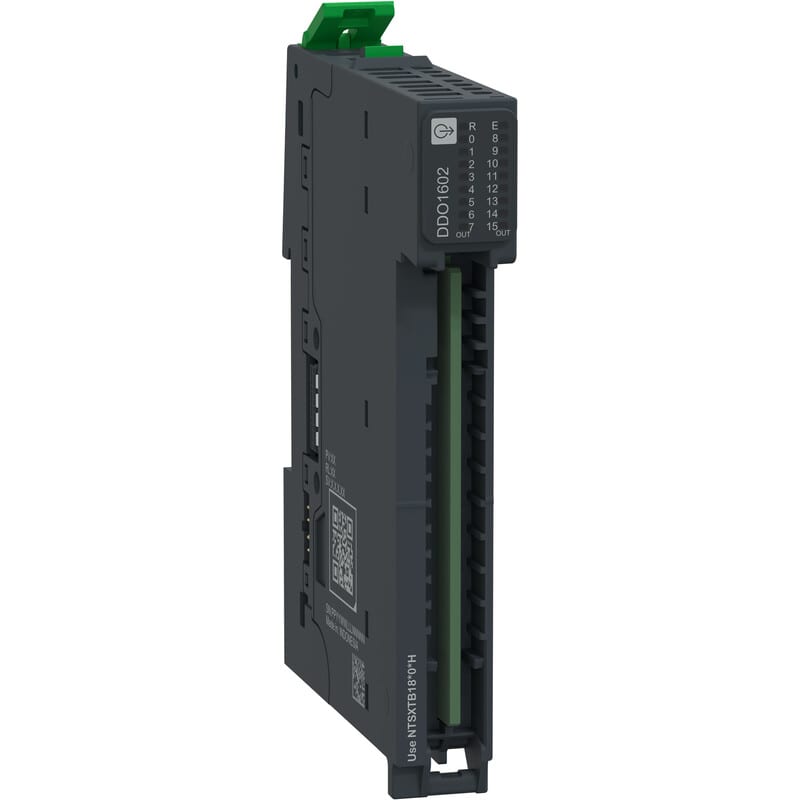

SCHNEIDER ELECTRIC - Logiikkamoduuli - Disk.lähtö 16ch, 24V DC+pohja

Discrete Output Module + Base, 16 Out, 24V DC, 500mA, Source, Protected, 1 Wire, Modicon Edge I/O NTS This discrete output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog mixed IO module. It features 16 discrete outputs that operate at 24VDC with a current capacity of 500mA, with a source logic, with a 1-wire connection. It is used to send control signals to various devices based on the system's logic. It functions within a temperature range of minus 40 to 70 degrees Celsius. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.074kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
