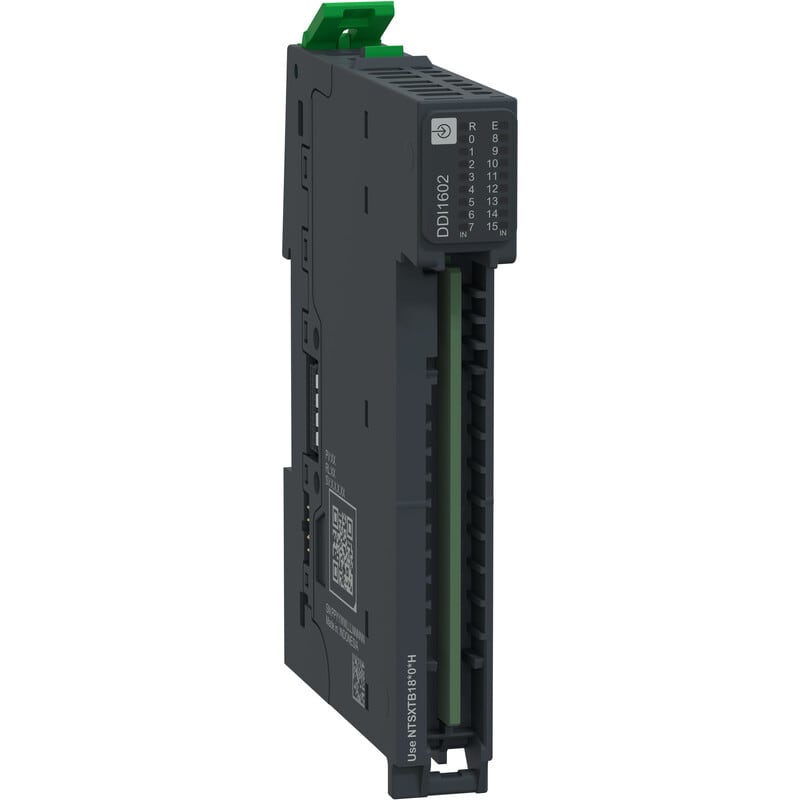

SCHNEIDER ELECTRIC - Logiikkamoduuli - Disk.tulo 16ch, 24V DC+pohja

Discrete Input Module + Base, 16 In, 24V DC, Source, 1 Wire, Modicon Edge I/O NTS This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 16 discrete inputs operating at 24V DC, with a source logic, with a 1-wire connection. It is used in automation and control systems to monitor the status of various discrete (on/off) signals. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
