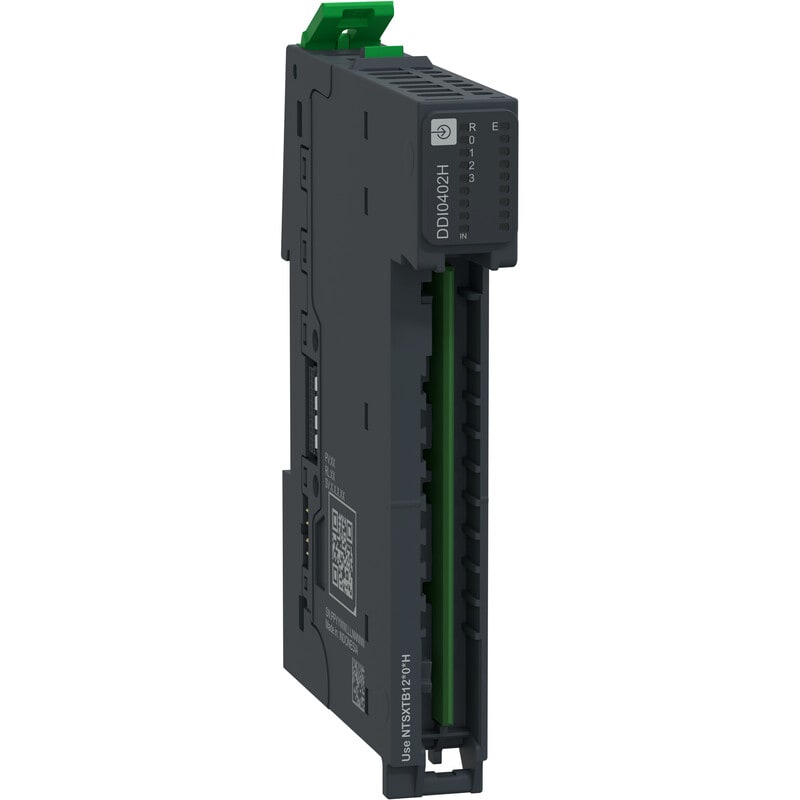

SCHNEIDER ELECTRIC - Logiikkamoduuli - Disk.tulo 4ch, 24V DC+pohja

Discrete Input Module + Base, 4 In, 24V DC, Sink, Diagnostics, 1/2/3 Wires, Hardened, Modicon Edge I/O NTS This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 4 discrete inputs, supporting 24VAC, with a sink logic, a 1-2-3-wire connection, and a diagnostics monitoring. It sends control signals to various devices based on the system's logic. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP protection degree is IP20 and a protective coating is applied to electronic components and printed circuits. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.071kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
