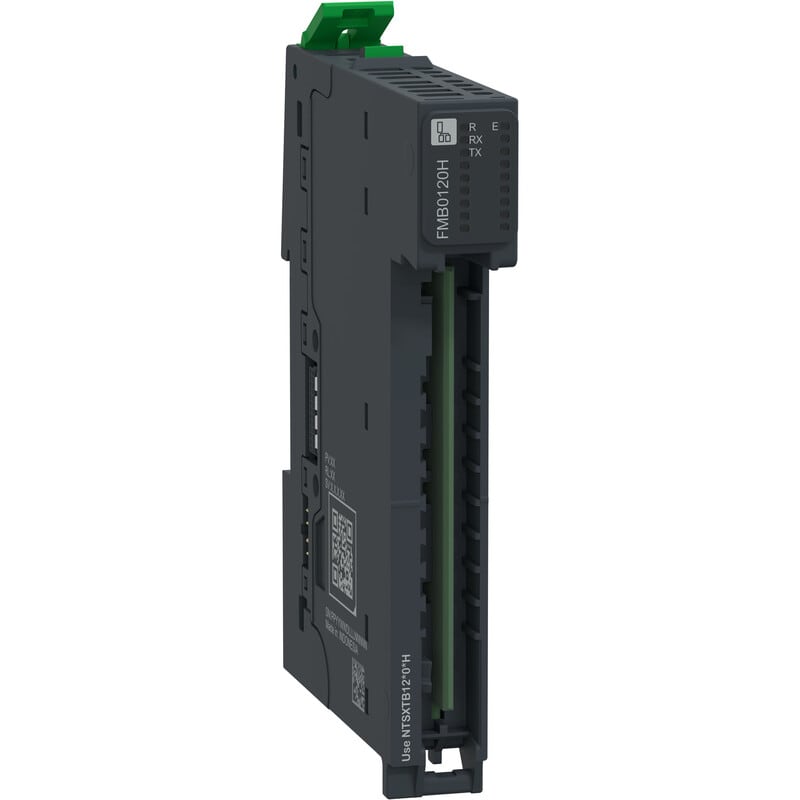

SCHNEIDER ELECTRIC - Logiikkamoduuli - Kenttäv. Modbus RS485/232+pohj

Field Device Master Module + Base, Serial RS485/RS232, Modbus RTU, ASCII, Client, 115 kbps, Hardened, Modicon Edge I/O NTS This field device master kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a field device master module. It serves as a communication interface for a cluster utilizing Serial RS485/RS232, as well as Modbus RTU and ASCII protocols. It manages communication between field devices like sensors, actuators, and controllers, and the control system. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
