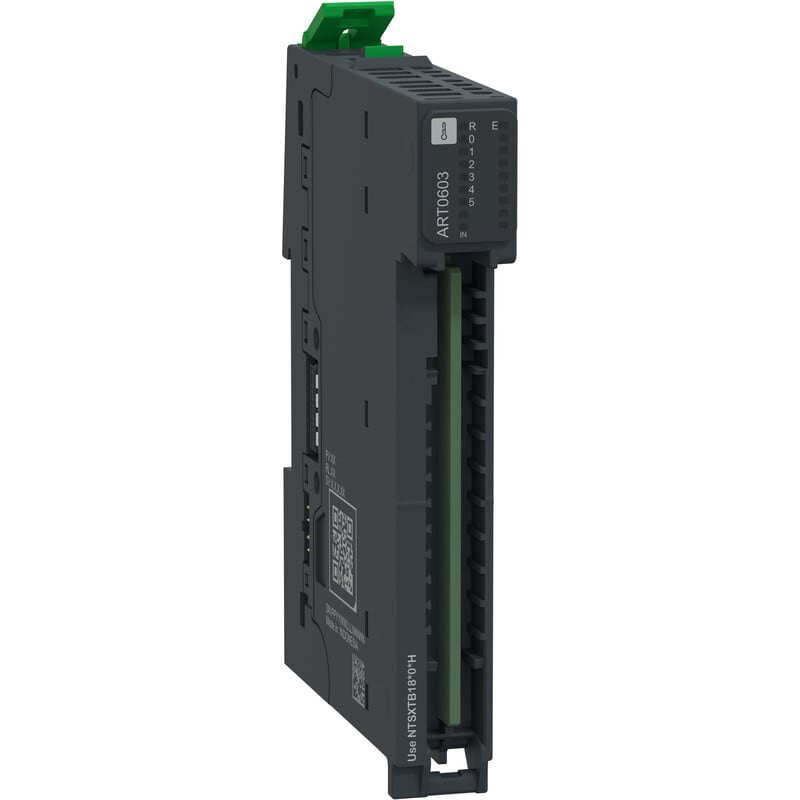

SCHNEIDER ELECTRIC - Logiikkamoduuli - Lämpötilatulo 6ch + pohja

Temperature Input Module + Base, 6 Differential In, RTD, Thermistor, 2/3 Wires, Modicon Edge I/O NTS This temperature input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a temperature input module. It features 6 differential temperature inputs (16-bit resolution with Overflow), such as thermistor, RTD and resistance, with a 2-3-wire connection. It is used to measure and monitor temperature in various systems or processes. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
