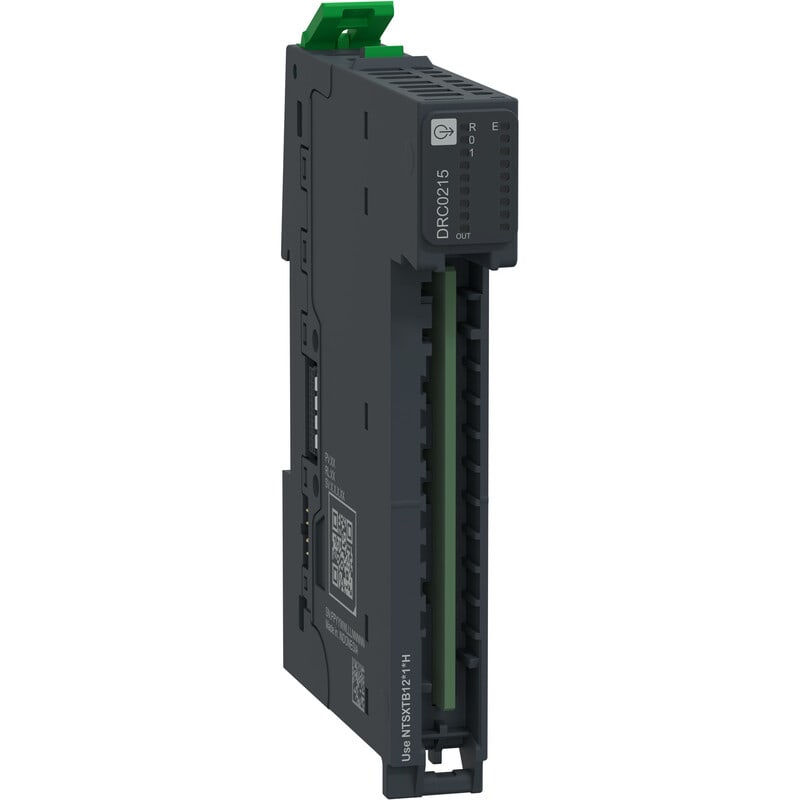

SCHNEIDER ELECTRIC - Logiikkamoduuli - Relelähtö 2ch, NO/NC, 2A+pohja

Relay Output Module + Base, 2 Isolated Out, NO/NC, 2A, 5V to 125V DC, 24V to 240V AC, Modicon Edge I/O NTS This relay output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a relay output module. It features 2 isolated NO/NC relay outputs, 2A, operating between 5 to 125V DC, and 24V to 240V AC. It is used to control various devices by using NO/NC relay switches. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
